Zeoluff Solar Pumping System

Solar drive pumping systems are an environmentally friendly solution for pumping water in remote areas. It uses solar panels to generate electricity to power the water pumps and draw water from the water source. it has features of efficiency, and reliability, and requires minimal maintenance, providing a sustainable source of water for agriculture, livestock, etc. It is easy to install and offers a cost-effective solution for those with limited power and water resources.

Zeoluff mainly provides 3 types of solar water pumping systems: DC pump solar system, AC/DC hybrid pump solar system, and solar surface pump system. These systems mainly include solar panels, a solar water pump, solar mounting brackets, and installation accessories. Here are details of this solar pumping systems:

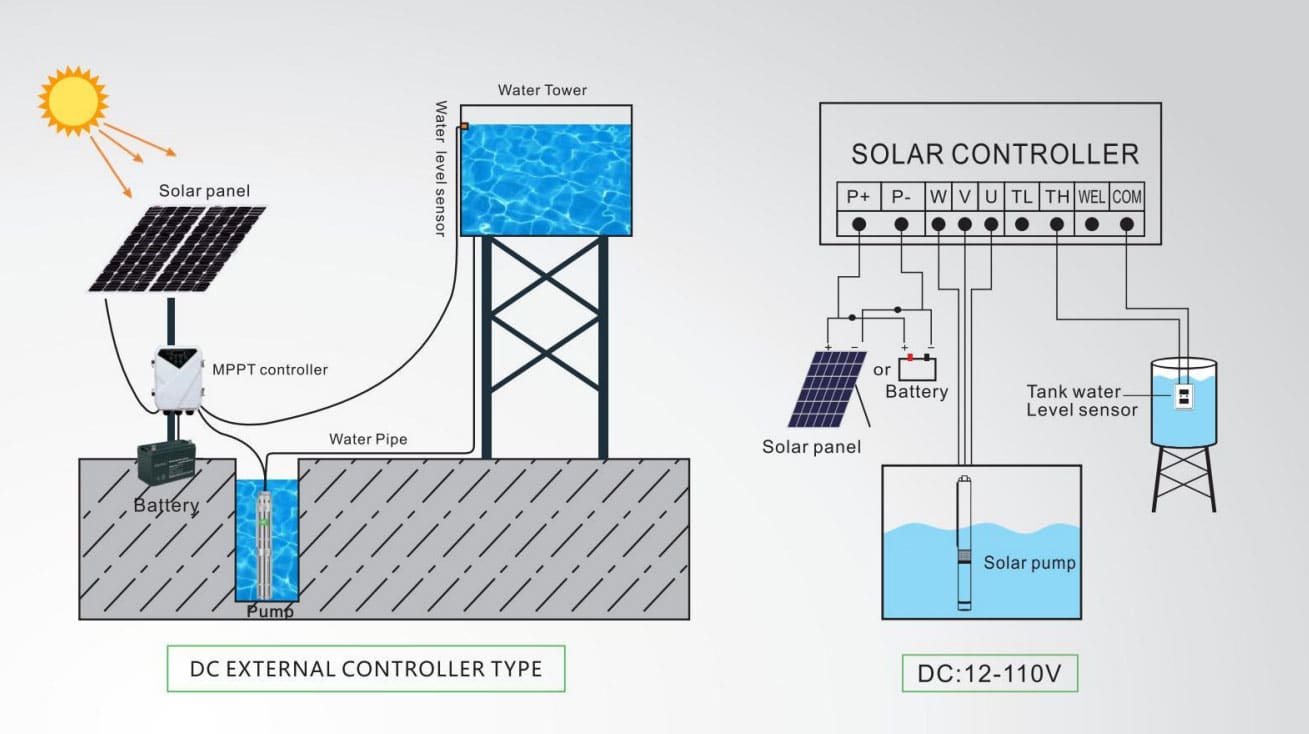

DC Pump Solar System:

Main Parts of DC Pump Solar System:


Advantages of Water Pump:

1. DC brushless permanent magnet synchronous motor for solar DC submersible oil pump, high speed, and high efficiency.
2. 304 stainless steel pump shaft; high quality bearing; alloy mechanical seal.
3. The motor coil adopts an automatic winding machine and centralized winding technology, which greatly improves the efficiency of the motor.
4. Intelligent water shortage protection: the well pump automatically stops working when there is no water in the well, and automatically starts working after 30 minutes.
5. Controller: MPPT function; variable frequency function; automatic working function; water-proof and leak-proof.
6. Access to AC power even on rainy days, easily solve the energy problem.

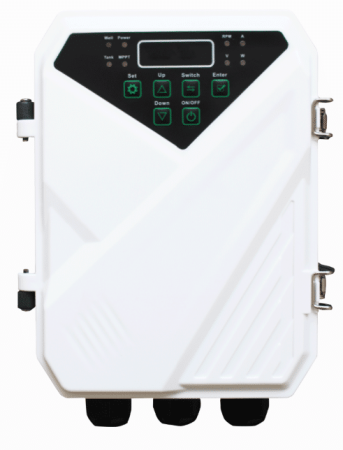

Advantages of DC Controller:

1. Waterproof rating: IP65.
2. MPPT function, higher solar energy utilization.
3. Automatic charging function.
4. LED display: power, voltage, current, speed, other working status, and error code.
5. Frequency conversion function: it can run automatically with frequency according to the solar energy, and users can also change the pump speed manually.
6. Automatic start and stop working.
7. Waterproof and leak-proof: double sealing effect.
8. Soft start: no inrush current to protect the pump motor.
9. High pressure / low pressure / over current/high temperature protection.

Technical Parameter of DC Pump Solar System:

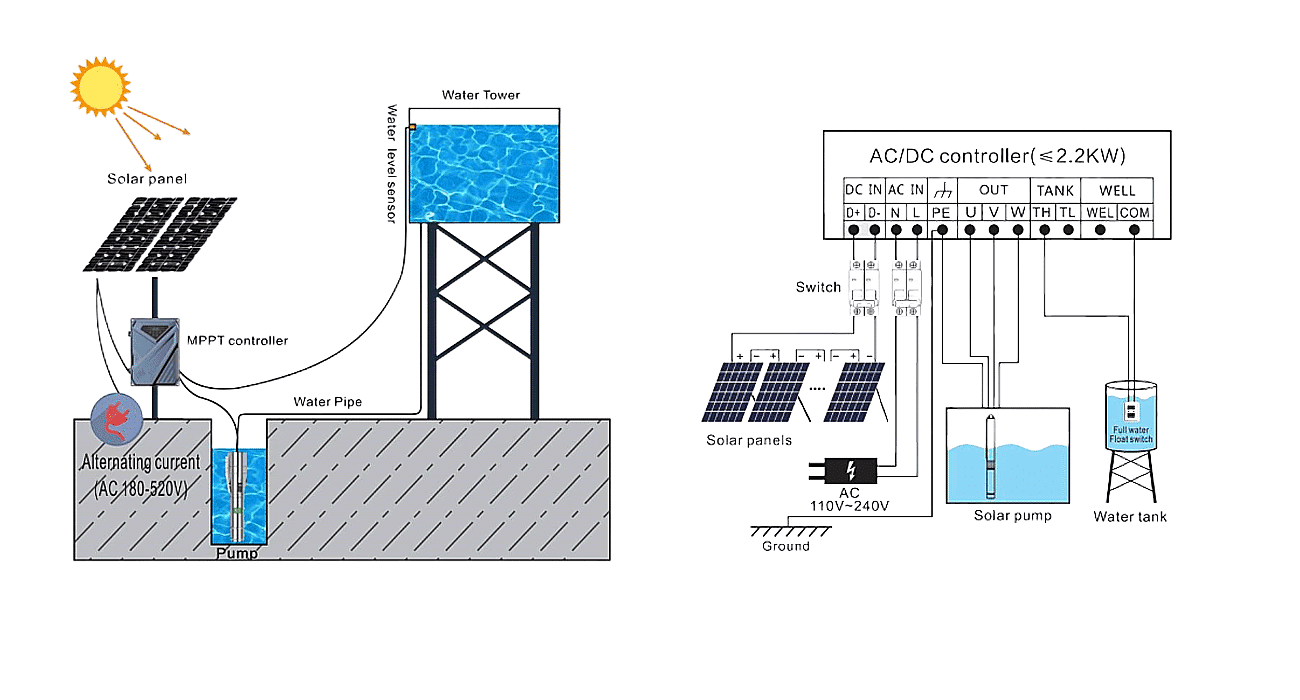

AC/DC Hybrid Submersible Pump System:


Advantage of AC/DC solar pump:

Advantage of AC/DC Solar Pump:

1. DC brushless permanent magnet synchronous motor for solar DC submersible pump to get high speed and high efficiency.
2. 304 stainless steel pump shaft; high-quality bearings; alloy mechanical seal.
3. Motor coil adopts automatic winding machine centralized winding technology, so motor efficiency is greatly improved.
4. Intelligent water shortage protection: when there is no water in the well, the pump will stop working automatically and start working automatically after 30 minutes.
5. Controller: MPPT function; frequency conversion function; automatic working function; waterproof and leak-proof.
6. It can be connected to AC power on rainy and cloudy days, which can easily solve the energy problem.

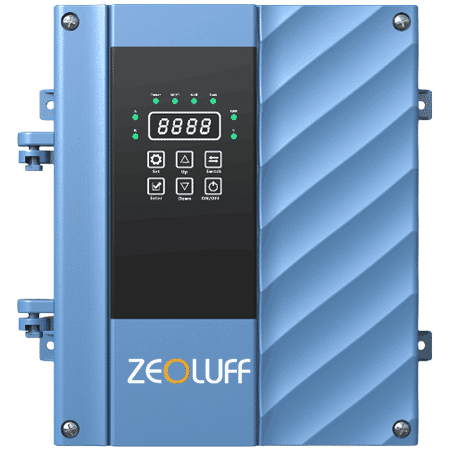

Advantage of AC/DC Solar Controller:

1. Waterproof rating: IP65; Waterproof and leak-proof: Double sealing effect.
2. Voltage range: DC80-420V; AC85-280V
3. Ambient temperature:-15°C~60°C
4. Maximum input current: 17A
5. Switch between AC and DC automatically without manual operation.
6. MPPT function, higher utilization of solar energy.
7. LED display power, voltage, current, speed, and other operating statuses.
8. Frequency conversion function: It can automatically operate with frequency according to the solar power generation, and the user can also change the pump speed manually.
9. Soft start: No inrush current to protect the pump motor.
10. High voltage / low voltage / over current / high-temperature protection.

Technical Parameter of Hygrid Pump Solar System:

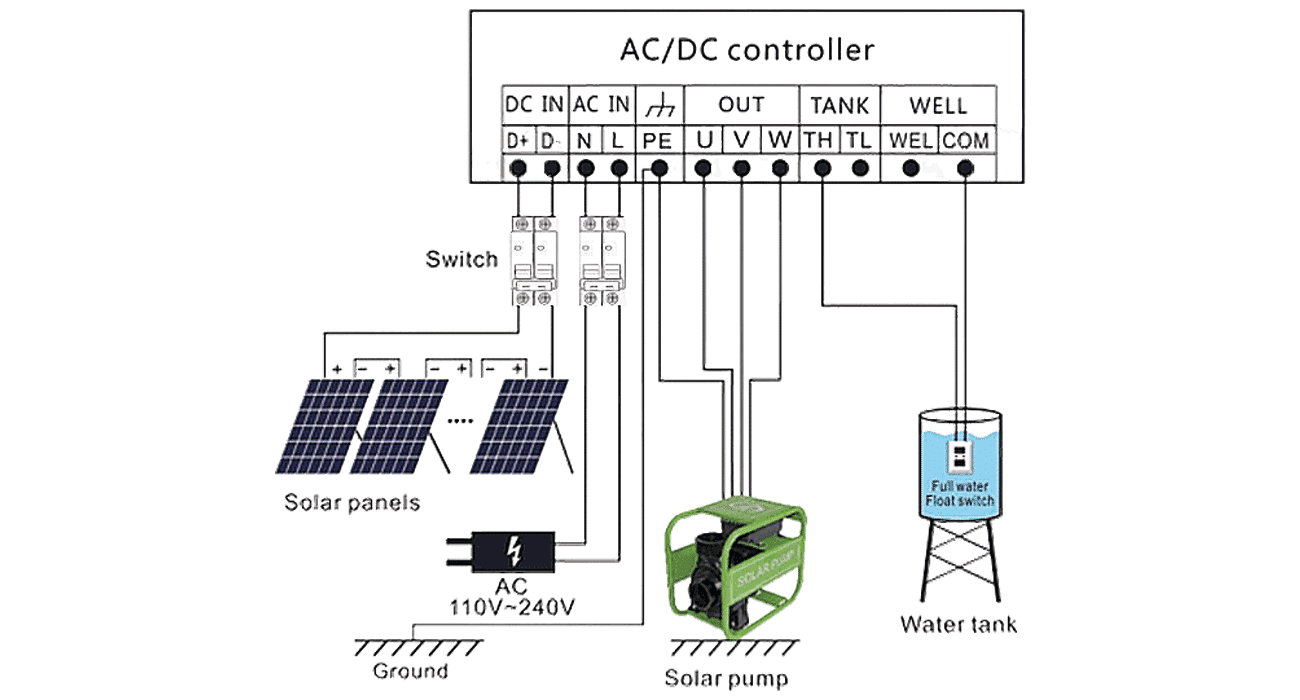

Solar Surface Pump System:

Main Parts of Solar Surface Pump System:

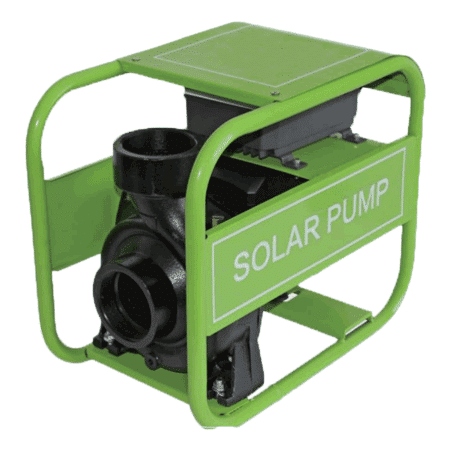

Advantages of heavy-duty solar water pump Kits:

1. Intlet/Outlet/Pump Body:304 Stainless steel
2. Motor Body: Die-cast Aluminum
3. Bear: NSK/Screw:316 stainless steel
4. Motor: Permanent Magnet Brushless DC Motor(Without Hall)
5. Controller:32bit MCU/FOC/Sine Wave Current/MPPT
6. Controller Shell: Die-cast Aluminum(IP67)
7. Warranty : 3 years

Advantages of Solar Surface Pump Controller:

1. Automatic operation when the battery is sufficient or the water tank is not full. Automatically shuts off when the water tank is full.
2. High waterproof grade: IP65
3. Waterproof and leak-proof double sealing effect.
4. Soft start technology: no inrush current, longer pump motor life.
5. High voltage/low voltage/over current/high-temperature protection.

Technical Parameter of Solar Surface Pump System:
